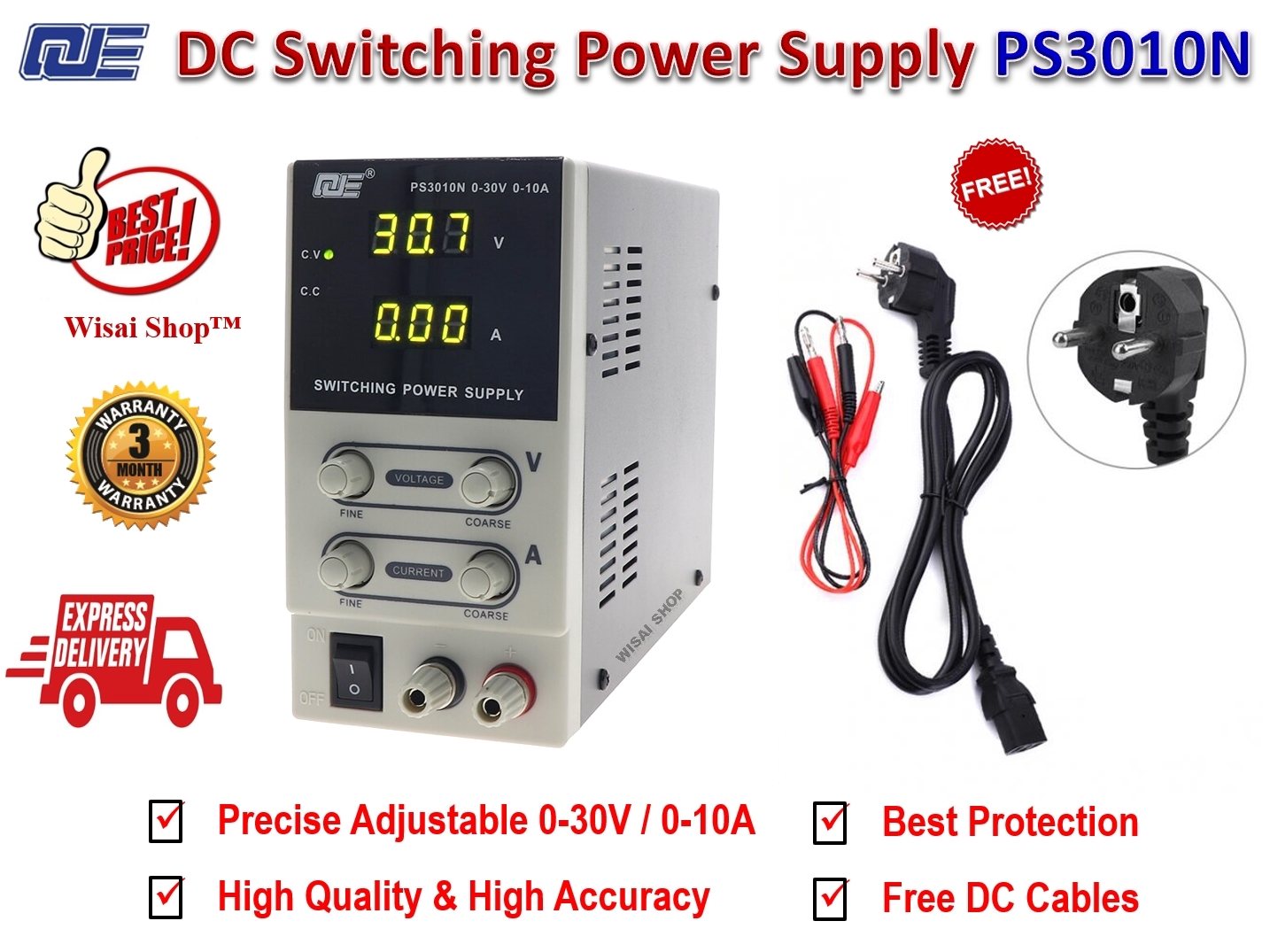

QJE High Accuracy DC Switching Power Supply ปรับค่าได้ 0-30V และ 0-10A รุ่น PS3010N

High Accuracy DC Switching Power Supply Adjustable 0-30V & 0-10A

Brand: QJE
Model: PS3010N

Regulated DC switching power supply with high performance and high precision. It can be widely used in production line test, electrical maintenance, aging products, battery charging, laboratories, scientific research and teaching and many other areas.

Features:

• Professional regulated DC switching power supply with high quality.
• Current and voltage are adjustable continuously, coarse and fine knobs for precise adjustment.
• Input voltage AC220V)
• Automatically switch constant voltage and constant current mode.
• PWM switch design, highly efficient. This power supply has a close performance to liner power supply, but its efficiency is much higher than liner power supply.
• 3 digits LCD display of voltage and current, with backlight, it is convenient to read.
• Current limiting protection, current limit can be set freely.
• Intelligent temperature control fan for heat dissipation, low noise.
• Low ripple, small size, light weight.
• Applied in production line test, electrical maintenance, aging products, battery charging, laboratories, scientific research and teaching and many other areas.

Specifications:
Output: DC0-30V, 0-10A
Plug Type: US Standard
Input Voltage: AC220V 50Hz/60Hz
Supply Regulation: CV<=0.2%+10mV
Load Regulation: CV<=0.2%+10mV
Ripple: <=100mVrms
Protection: Current Limit
Display: LCD Display
Accuracy: Voltage: ±1%+1digits; Current: ±1%+2digits
Operating Temperature: 0-40°C
Operating Humidity: <RH90%
Operating Atmosphere Pressure: 86kPa-104kPa
Operating Time: 8hours continuously
Item Size: Approx. 23.5 x 7.5 x 15.5cm / 9.25 x 2.95 x 6.1in
Item Weight: 1613g / 56.9oz
Package Size: 32 x 13 x 21.5cm / 12.60 x 5.12 x 8.46in
Package Weight: 2016g / 71.12oz

Package Included:
1 x DC Switching Power Supply PS3010N
2 x Banana Jack (Red & Black)
1 x Power Line
1 x User Manual(English)
